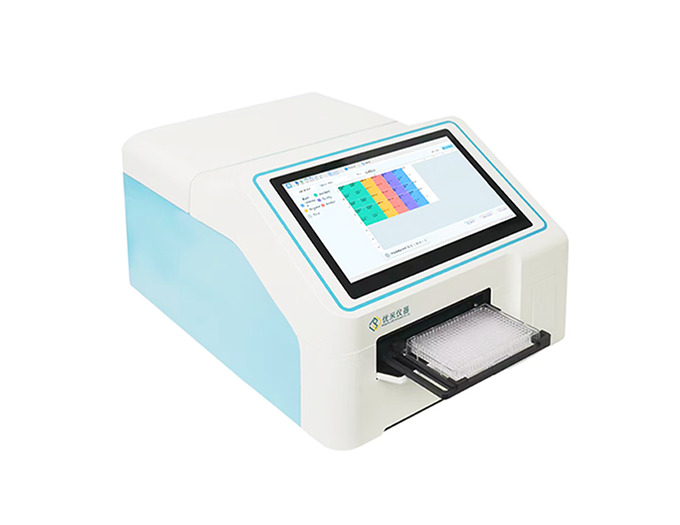

Quick and convenient operation mode is easy to use
(1) The replacement of light source and filter can be completed without opening the shell
(2) No need to connect the computer, the instrument can complete the experimental operation
(3) A variety of data output interfaces, support USB data transmission. Data transmission and processing is convenient
(4) Measurement data can be directly exported to Excel for further analysis

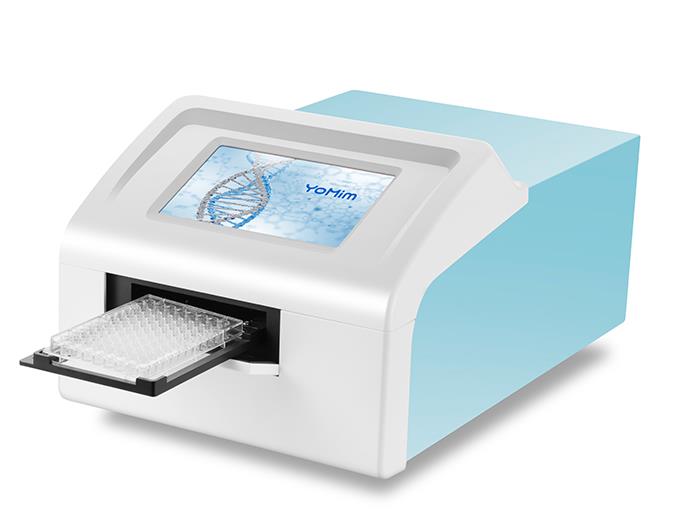

Incubation(UMR9600T) and linear shaking function
(1) UMR-9600T is with incubation function. Incubation temperature: RT. +4C-50C
(2) Perform onboard linear shaking, low（5hz）, medium（11hz）, high speed（20hz）available
A variety of optical channels are available and support individual customization
(1)6v 10w halogen light source, energy-saving design, maximize the service life of the light source
(2) 8-filter wheel, 4 standard filters, you can choose a variety of other filters. The wavelength range is 340nm-850nm, which can meet a variety of applications
(3) Single/dual wavelength detection, reading plate speed is fast. It takes only 10 seconds to read the entire 96-well plate or 16 seconds to complete the dual-wavelength test
(4) 9 channel vertical optical path, zero dispersion single-mode fiber measurement system, with the function of automatic positioning of microplate center
(5) Instrument startup self-test function, check key components such as optical path and moving position to ensure stable and reliable operation of the instrument; A reference optical path channel system ensures more stable detection data
Easy-to-use operation interface
(1) 7-inch high resolution LCD touch screen
(2) Several languages available: Chinese and English;
(3) Visualization layout the microplate, can quickly label blank, sample, positive and negative control and quality control, support multi-value control
(4) Various testing programs can be preset, single plate can be tested for a number of different inspection items.
Powerful analysis software
(1) Built-in data analysis software, can achieve kinetics, standard curve, qualitative, quality control and other detection and analysis, including curve fitting, kinetic analysis and report functions; Software covers program generation and storage, as well as detection data storage function, storage capacity is large
(2) Built-in standard curve library, when doing experiment, one can use the saved curve directly

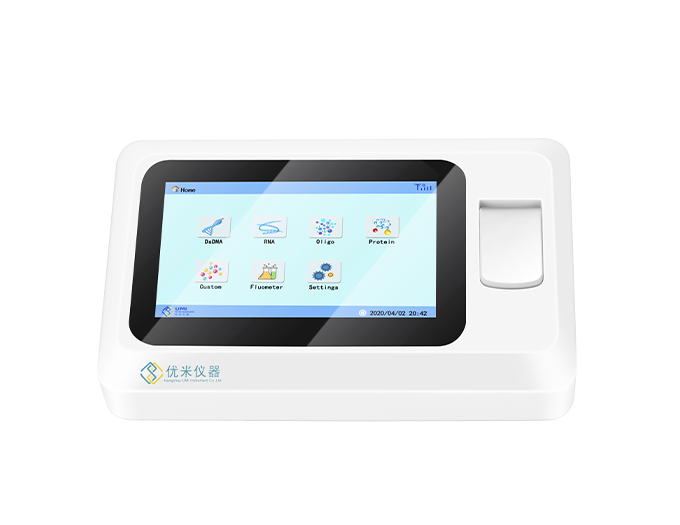

(1) Your sample is very rare and difficult to handle
(2) Extracted dsDNA, oligos, RNA or a small amount of protein
(3)This sample will be used for expensive downstream experiments such as qPCR, PCR cloning, transfection, and next-generation sequencing for precise measurements
